Professional equipment for wildland firefighters
frontline

Fire Hose Nozzle SG 540 vft

Flow regulating Fire Hose Nozzle SG 540 vft

Flow regulating Fire Hose Nozzle SG 540 vft for Wildland fires. It converts high pressure water in a fast powerful water jet.

Buy now

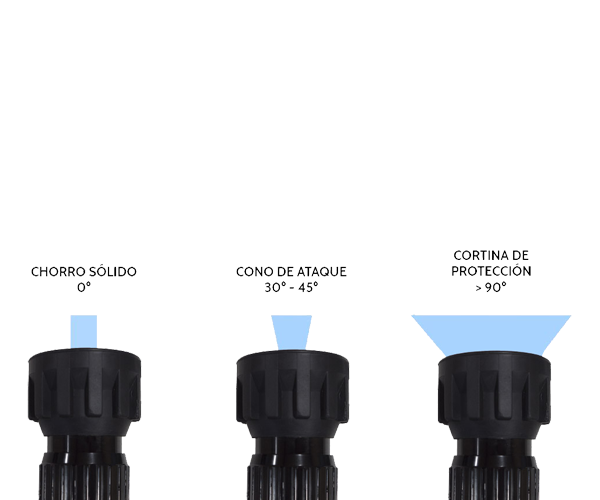

Rapid Pattern Selection
  • Focused Long Range Jet: Enhanced Attack capability. Difficulty in handling, high water consumption levels (with high flow rates). Small contact surface with fire.
  • Attack cone: Opening range between 30º and 45º: shorter reach, easy handling.
  • Dense Fog Pattern: Maximum opening range: Little reach. Mainly used to protect the firegighters, facilities and  control the smoke and gases movement. Greater contact surface, therefore, greater heat absorption.

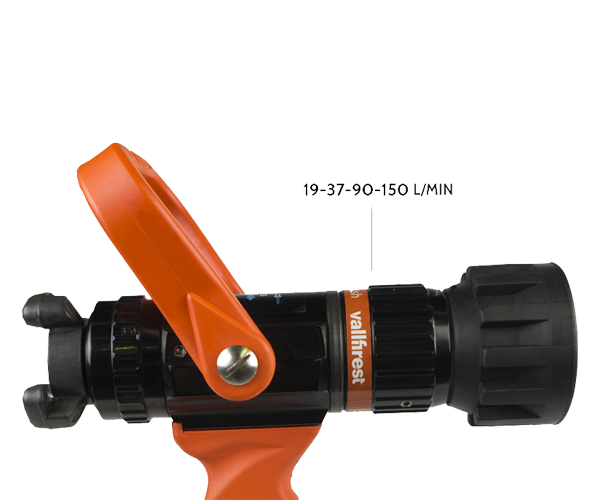

Multiple Flow Range

Aluminum Rapid Flow Selection ring, allow the selection between 4 flows, without varying the attack pattern. The second inner cylinder is responsible for adjusting the flow rate by changing the pitch diameter.

Spinning Teeth

Swappable Spinning Teeth. Generation of high quality water drop through the rotating teeth.

Great quality of jet and fog, even at small flow rates (19lts / min).

Low Maintenance

Manufactured with high durability and high temperatures resistant materials. Hard anodised Aluminium body. Equipped with Barcelona 25 mm racord

Technical specifications
Regulations



NFPA 1964

Standard for spray nozzles.

EN-15182

Manual hose lances intended for services.

Weight

1.58 kg.

Length

23 cm.

Selectable flow rates

19-37-90-150

Deflator type

Rotating teeth.

Work pressure

7 Bar at 100 Psi l 16 Bar at 228 Psi.

Material

Anodized aluminum.

Rotary inlet

11/2 ”(25mm.) NH l NPSH l BSP l Barcelona

Positions

Jet, 30º fog and total fog.

Request information

Up to 16 bar.
