Professional equipment for wildland firefighters

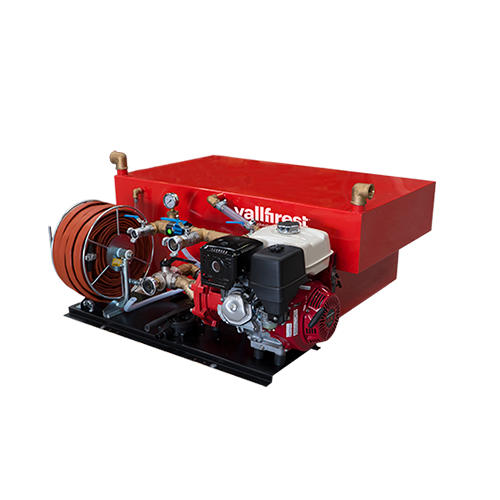

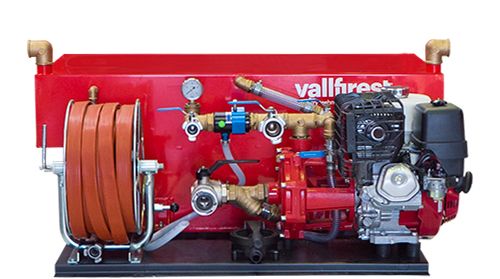

High pressure skid unit with Centrifugal Pump

Medium pressure | Up to 16 Bar

Rapid intervention skid unit designed for pickup vehicles andtrailers, equipped with centrifugal pumps up to 14 bars with a maximum flowof up to 248 liters per minute.

Features:

- High-quality components and replacement part availability.

- Great availability of spare parts.

- Resistant tanks made of stainless steel.

- The best quality/price ratio.

- 2-year warranty.

Available configurations
Engine Fuel Start Power Pump Max Pressure Max Flow
B&S XR950 Gasoline Manual 6,5 HP 2RD 30/6 8,5 bar 240 l/min
Honda GX270 Gasoline Manual 8,4 HP 2RD 50/9 12 bar 258 l/min
Kohler CH395 Gasoline Manual/Electric  9,5 HP 2RD 50/9 12 bar 258 l/min
B&S XR1450 Gasoline Manual/Electric  10 HP 2RD 50/9 12 bar 258 l/min
Honda GX390 Gasoline Manual/Electric  11,7 HP 2RD 50/13 15,5 bar 275 l/min
Kohler CH440 Gasoline Manual/Electric  14 HP 2RD 50/13 15,5 bar 275 l/min
B&S XR2100 Gasoline Manual/Electric  13,5 HP 2RD 50/13 15,5 bar 275 l/min
Honda GX390  Gasoline Manual/Electric  11,7 HP FPS4200 25 bar 390 l/min
Kohler CH440 Gasoline Manual/Electric  14 HP

FPS4200

25 bar 390 l/min
B&S XR2100 Gasoline Manual/Electric 13,5 HP

FPS4200


25 bar 390 l/min
Lombardini 15LD440 Diesel Manual/Electric 11 HP 2RD 50/9 12 bar 258 l/min
Lombardini 15LD440 Diesel Manual/Electric 11 HP 2RD 50/13 15,5 bar 275 l/min



Water tank

Large capacity tanks to choose between several configurations. From 450-600 Liter water storage

2 inner breakwaters to prevent water movement to ensure vehicle stability.

Quick attack winder and Absortion oversleeve

Winder mounted on the main structure. Capacity: Two 20 meter sections 20 mm in diameter.

5-meter translucent white or blue spiral absorption oversleeve. Used to suction water from anywhere and to fill the extin- guishing tank.

Optional accessories

Hose: A 3-layer hose for low-pressure use with two 20-meter sec- tions made of circular weaved fabric.

Fire Hose Nozzle: Flow regulator fire hose nozzle Vallfirest

How to use the centrifugal pump skid unit
