Professional equipment for wildland firefighters

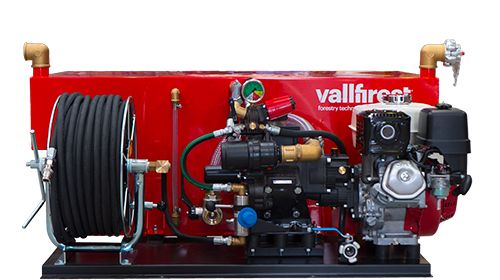

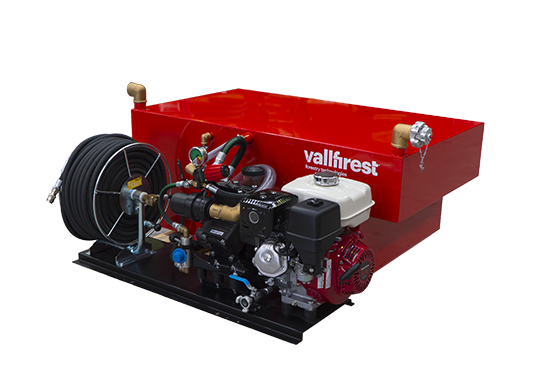

High pressure skid unit with Membrane Pump

Medium - High pressure | Up to 50 Bar





Rapid intervention skid unit designed for pickup vehicles and trailers, equipped with membrane pumps up to 50 bars with a maximum flow of up to 105 l/min.

Features:

High-quality components and replacement part availability.

Great availability of spare parts.

Resistant tanks made of stainless steel.

The best quality/price ratio.

2-year warranty.

Available configurations
Engine Fuel Start Power Pump Maximum Pressure Maximum Flow
Honda GX160 Gasoline Manual  4,8 HP AR30 40 bar 36 l/min
Honda GX270 Gasoline Manual 8,4 HP AR503 40 bar 54 l/min
Kohler CH395 Gasoline Manual / Electric 9,5 HP AR503 40 bar 54 l/min
B&S XR1450 Gasoline Manual / Electric 10 HP AR503 40 bar 54 l/min
Honda GX390 Gasoline Manual / Electric 11,7 HP AR813 50 bar 80 l/min
Kohler CH440 Gasoline Manual / Electric 14 HP AR813 50 bar 80 l/min
B&S XR2100 Gasoline Manual / Electric 13,5 HP AR813 50 bar 80 l/min
B&S Vanguard 18 Gasoline Manual / Electric 18 HP AR1053 50 bar 102 l/min
Lombardini 15LD350 Diesel Manual / Electric 7,5 HP AR503 40 bar 54 l/min
Lombardini 15LD500 Diesel Manual / Electric 12 HP AR813 50 bar 80 l/min



Water tank

Configuración a medida

Capacidades: 120 - 1.000 litros.

Múltiples materiales a elegir:

Acero inoxidable

Polietileno.

Lona flexible.

Accessories included

Winder, Attack Lance and Suction Sleeve

The winder is assembled with a connection to the water pump. 70 meter rubber hose up to 80 bar.

Long-range, high-pressure lance (700 mm.). It has a variable angle with Ø 4.5 nozzle. Inlet connection 1/2 ”M.

Translucent aspirated suction hose with a length of 5 meters.

Foam system (optional)

Foam system and tool holder structure

Foam system: Compact and easy to use, mixes blowing agent from 0 to 6% in high pressure, manually controllable from the control panel.



Tool-holder structure: With the tool-holder structures, we increase the operability of these vehicles by accompanying the extinguishing kits of: hand tools, drip torches, chainsaws, water packs, EPIS, etc. Different possibilities fully customizable.

Check here for more information on the tool holder structure

How to use the Piston Pump Skid Unit
