Professional equipment for wildland firefighters

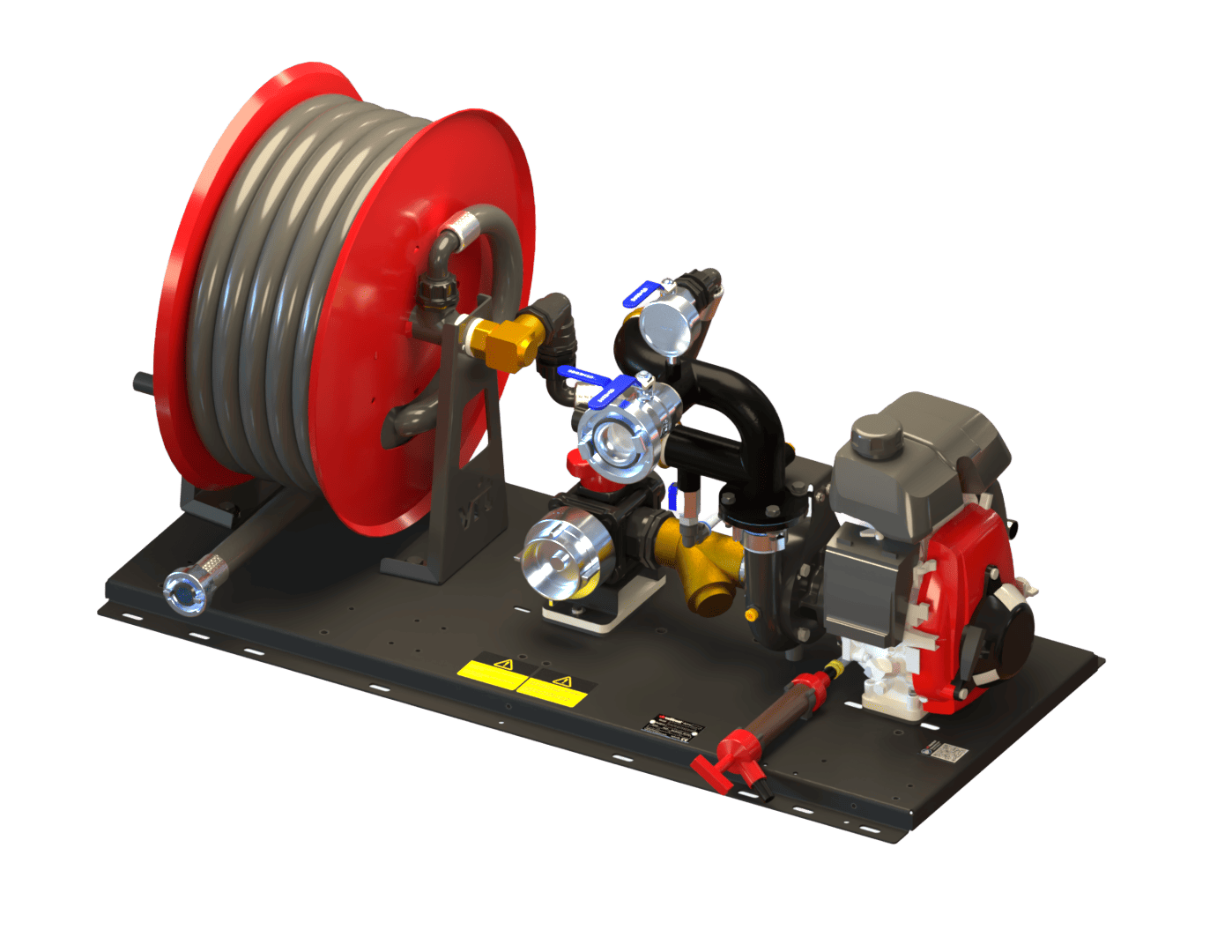

Fire skid units for utv

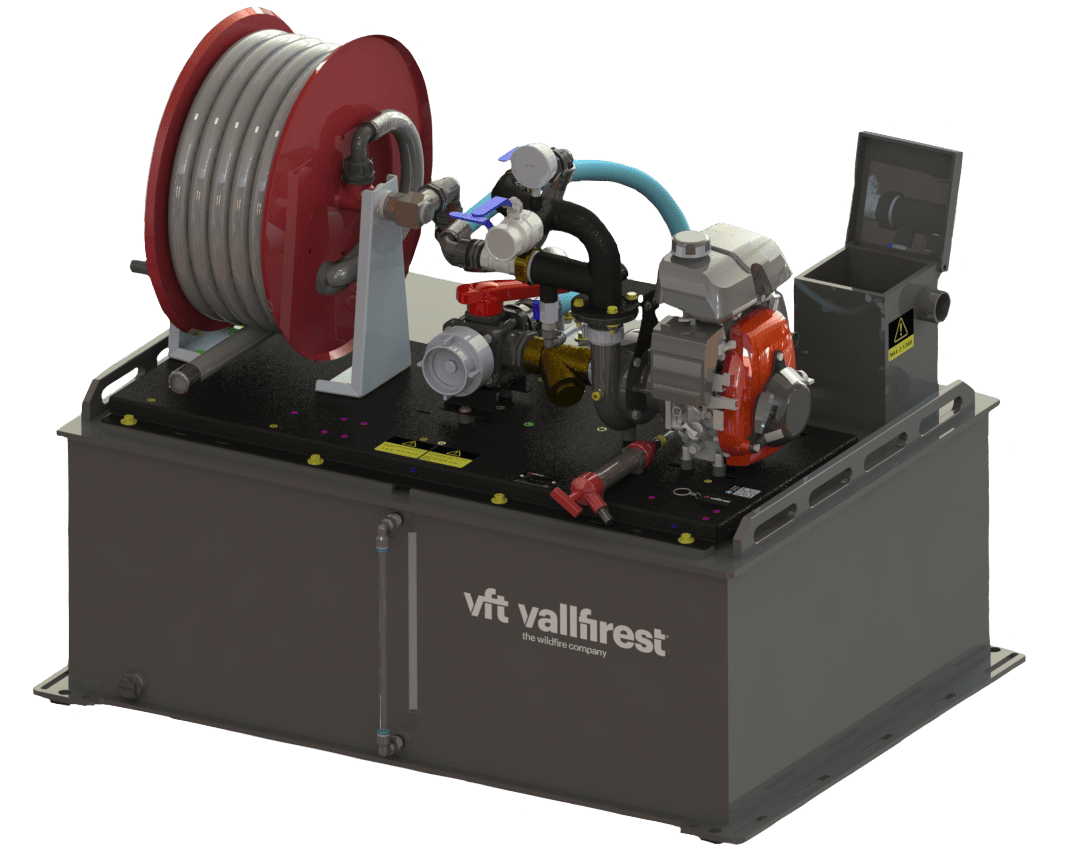

High quality and performance fire skid units for utv (buggy), equipped with centrifugal, membrane or piston pumps up to 100 Bar with a maximal flow up to 240 l/min.

Characteristics

- High quality components /pices

- With the best price quality ratio.

- Resistant tanks made of stainless steel

- High availability of spares

- 2 year warranty.

Available configurations

Centrifugal pump

Engine Power Pump Max Pressure Max Flow
B&S XR950 6,5 HP  2RD 30/6 8,5 bar 240 l/min.



Membrane pump

Engine Power Pump Max Pressure Max Flow
Honda GX160 4,8 HP AR30 40 bar 36 l/min.
Honda GX270 8,4 HP AR503 40 bar 54 l/min.



Piston pump

Engine Power Pump Max Pressure Max Flow
Honda GX390 11,7 HP XWL 42.10 N 100 bar 42 l/min
Kohler CH440 14 HP XWL 42.10 N 100 bar 42 l/min
B&S XR2100 13,5 HP XWL 42.10 N 100 bar 42 l/min

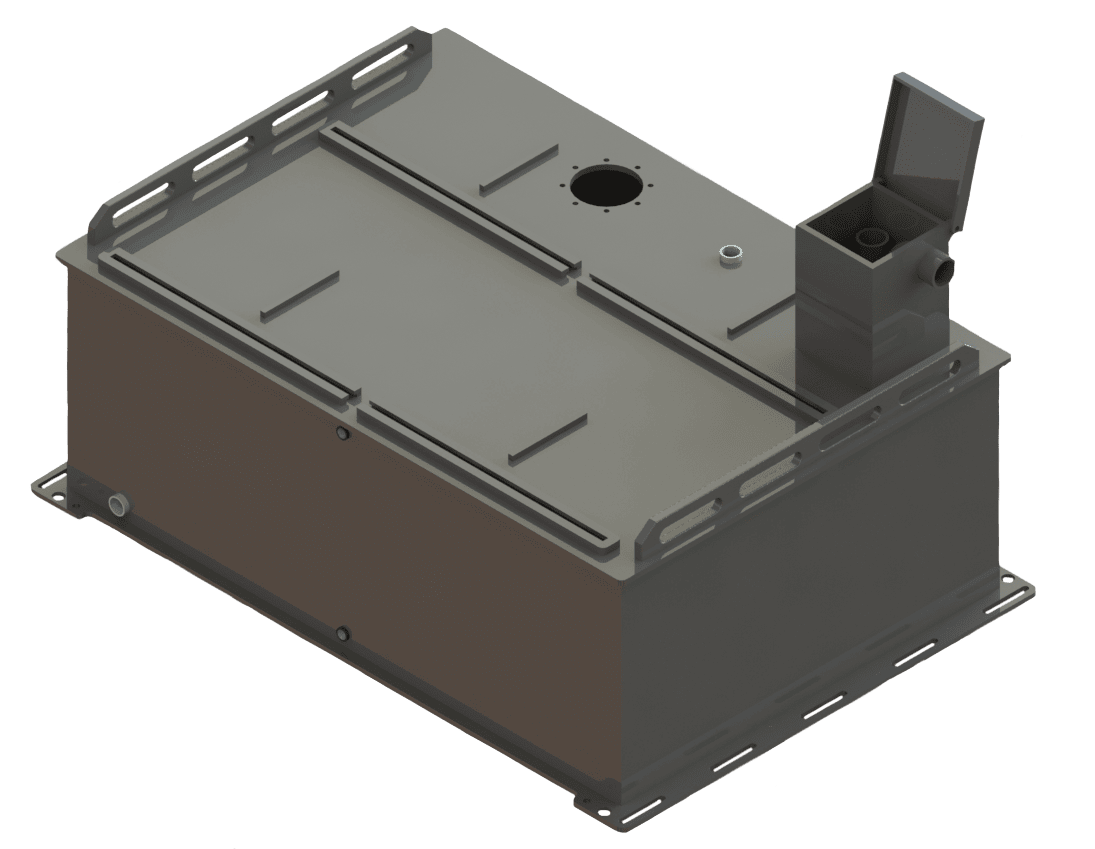

Water tank

Multiple tank choices according to the water stock needs from 120 to 250 liters. The 2 inside break waters avoid the lateral displacement ensuring the stability of the vehicle.

Accessories included
Winder, attack nozzle and absorption oversleeve

The winder comes assembled connected to the water pump. Rubber hose up to 70 meters up to 80 bar.

High pressure nozzle with large reach (700 mm.). Has a variable angle with nozzle tip Ø 2,3. Intlet connection male G 1/2".

Absorption Oversleeve translucent spiral with a length of 5 meters.



*Not all the skid units include all the accessories. For more detail about the possible configurations, check the technical sheet.

Optional accessories
Foam system

Light and compact, easy to use, mixes foam agent from 0 to 6% in high pressure, manually controllable from the control panel.

*Different possible configurations according to the motorpump chosen.

How to use the UTV skid unit
