Professional equipment for wildland firefighters
aerial

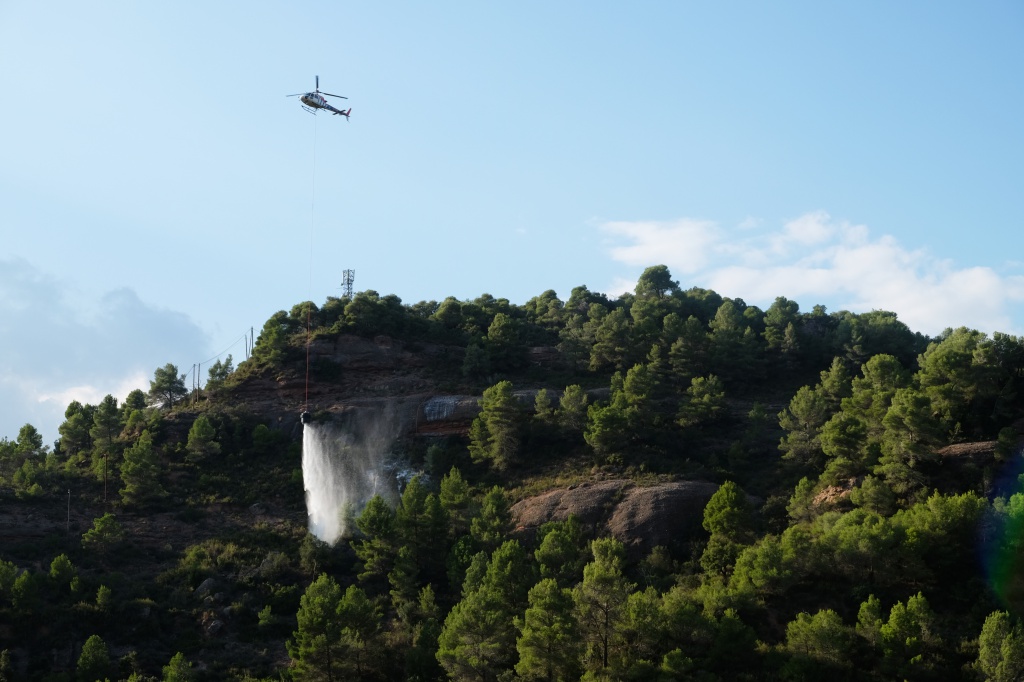

Leo System

Efficiency for aerial firefighting

The Leo System is a fire extinction device that produces a straight stream flow of Class A fire-fighting foam at a mixed pressure. The production of completely expanded and homogeneous foam takes advantage of all of its benefits as an extinguishing agent and users may choose the foam-forming agent concentration, direction and flow rate to adapt it to any type of ground and fuel. Pilots may control the foam production from the cabin with a single control (from 0,1% to 0,5% depending on the need) and vary the pressure and flow, sending an effective density without water loss by drainage.



Advantages
Benefits of Class A foam
  • Long lasting dispersal
  • High surface area application
  • Multi-purpose
  • Not Hazardous for firefighter personnel
  • Multiple filling systems
  • High visibility
  • Pilot full authority
Fast filling by immersion

1m

Minimum depth for filling by immersion.
Without suction pump.

30cm

Minimum depth for filling with suction pump.

Multi-purpose

Direct attack  ·  Parallel attack  ·  Indirect attack  ·  Fire exposure protection

Fixing maneuver

Accurate Foam / Water Line · Continuous Dump Footprint

Foam stream long lasting dispersal
The benefits of class A foam
  • Wetting characteristics
  • Clinging characteristics
  • Degreasing capability
High surface area application & high visibility
  • Greater coverage and cooling
  • Vapor supression
  • Durability
  • High Visibility
  • Water Saving
  • Biodegradable
Technical specifications

LEO 800 l.



Emply weight

240 kg.

Water capacity

800 l.

Foam agent capacity

80 l.

Mixing rate

0.1% wetting agent - 0.5% foam

Discharge time

30-60 sec.

Filling time

3 sec.

Flow

Up to 1600 l/min.

Pressure

2-6 Bar

Dimensions*

Diameter: 1200mm

Height 1700mm

Fuel tank

7 l.

Engine

4-stroke Gasoline
